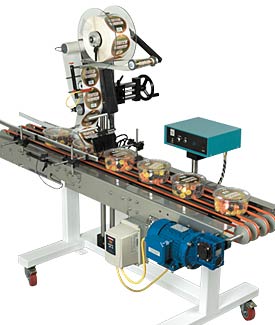

Band Style Conveyor System

Technical Data

  • LABEL HEADS AVAILABLE
    LS75/LS400/LS450/LS550
  • LABEL WIDTHS
    80 mm (3.15"), 120 mm (4.72"),
    150 mm (5.9"), 200 mm (7.87")
  • CONVEYOR
    Dimensions: Length 6'6" Width 12" with speeds up to 90 feet per minute
  • DISPENSING SPEED
    0-165 feet per minute depending on type of head used
  • CONSTRUCTION MATERIALS
    Anodized Aluminum and Stainless Steel, Powder Coated Steel
  • DRIVE
    AC Variable (main conveyor)
  • SENSING
    Photo Electric Product and Label Sensing
    Other Sensor Options available

Typical Applications

  • Top/Bottom Labelling
  • 3 Sided (“Nose” Labelling)

Coding and Marking

  • T.T. Direct
  • Hot Stamp Coding
  • Laser

Optional Accessories

  • Missing Label Detectors
  • Programmable Counters
  • Custom Designed Material
    Handling Systems
  • Friction Feeders
